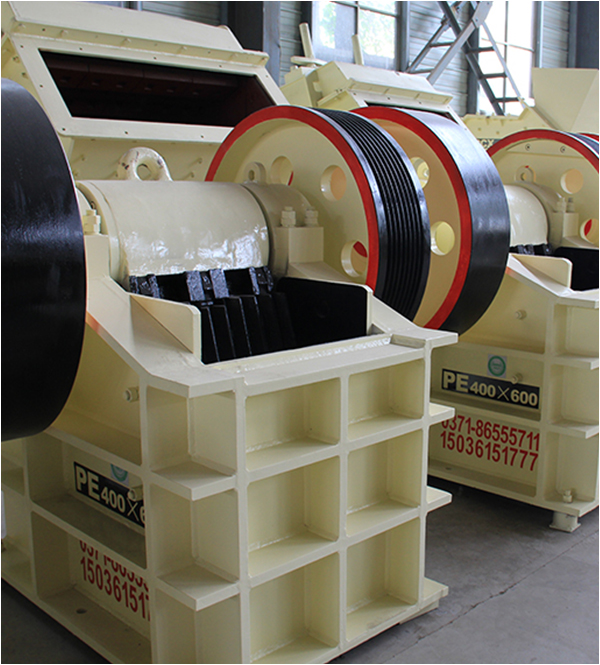

Jaw Crusher
[ Capacity ]: 1-700 t/h
[ Applicable Material ]:
Jaw crusher is a kind of stone crushing machine which is widely used as primary or secondary crusher. SWIT manufactures coarse jaw crusher and fine jaw crusher in stationary type or mobile type.
:hnbc@baichy.com :+86-371-86555722Application
Working principle
Advantage
Specification
Jaw crusher is widely used in various industries, such as mining, road and railway construction, building construction,water conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa, such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.
The electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or splitt when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.
1.Large crushing ratio and even discharged materials.
2.Crushing caviaty is deep, which improves the feeding capacity and output.
3.The adjusting range of discharged outlet is large and reliable,can meet various requirements of customer.
4.Lubrication system is safe and reliable,easy to change the spare parts and convenient maintenance.
5.Simple structure and low operation cost.
| Model | Feeder Opening Size(mm) | Max. Feeding Size (mm) | Discharging Opening Size(mm) | Capacity (t/h) | Motor Power (kw) | Overall Dimension (mm) |
|---|---|---|---|---|---|---|
| PE150×250 | 150×250 | 130 | 10-45 | 1-4 | 5.5 | 896x745x935 |
| PE200×300 | 200×300 | 180 | 15-50 | 2-6 | 7.5 | 910×750×990 |
| PE200×350 | 200×350 | 180 | 18-70 | 3-10 | 7.5 | 1000x870x990 |
| PE250×400 | 250×400 | 210 | 25-60 | 5-20 | 15 | 1215x1240x1210 |
| PE400×600 | 400×600 | 350 | 40-90 | 15-60 | 30 | 1700x1750x1680 |
| PE500×750 | 500×750 | 425 | 50-100 | 40-130 | 45 | 2150x1900x1950 |
| PE600×900 | 600×900 | 500 | 60-125 | 90-180 | 55 | 2500x2010x2350 |
| PE750×1060 | 750×1060 | 630 | 60-150 | 110-380 | 110 | 2630×2310×3110 |
| PE900×1200 | 900×1200 | 750 | 95-165 | 220-450 | 132 | 3720x2850x3250 |
| PE1000×1200 | 1000×1200 | 850 | 200-300 | 280-560 | 160 | 3820x2850x3250 |
| PE1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 220 | 3710x3446x4075 |
| PE1500×1800 | 1500×1800 | 1200 | 210-360 | 520-1100 | 280 | 5100x4700x4300 |
| PE150×750 | 150×750 | 120 | 10-40 | 5-16 | 15 | 1310x1118x1145 |
| PE250×750 | 250×750 | 210 | 15-50 | 15-30 | 22 | 1440x1751x1515 |
| PE350×750 | 350×750 | 300 | 15-50 | 18-40 | 30 | 1485x1680x1648 |
| PE250×1000 | 250×1000 | 210 | 15-60 | 15-52 | 30 | 1730x1950x1400 |
| PE250×1200 | 250×1200 | 210 | 15-60 | 20-60 | 37 | 1730x2150x1400 |
| PE300×1300 | 300×1300 | 250 | 25-60 | 30-105 | 55 | 2000x2320x1730 |
△
