​​Spring Cone Crusher (PYB Series)​​ has become the core secondary and tertiary crushing equipment in mining, building materials, metallurgy, and other industries due to its high efficiency, high crushing ratio, and low operating cost. Choosing the right model (such as PYB600, PYB900, etc.) and optimizing the operating parameters (eccentric speed, discharge port) can significantly improve the crushing efficiency and economic benefits.

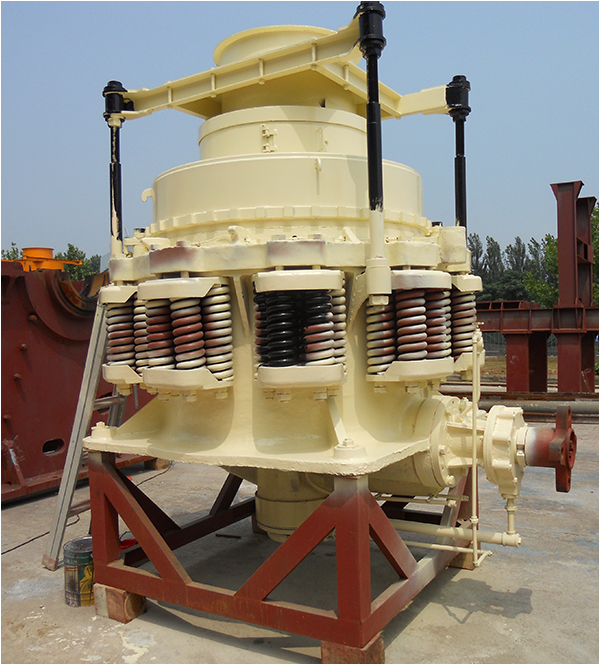

The PYB Series Spring Cone Crusher is a medium-fine crushing equipment that uses mechanical spring overload protection. It is widely used in mining, building materials, metallurgy, chemical industry and other industries. It is suitable for crushing medium and above hardness ores and rocks (such as granite, basalt, iron ore, etc.).

Products Display

Material Application

Spring Cone Crusher Features

High-hardness rock (Compressive strength ≥150MPa)

Typical Materials​​: Iron ore▸ copper ore▸ granite

​​Applications​​: Secondary and tertiary crushing in mining operations,ore sizing for beneficiation plants

​​Medium-hard rock (Compressive strength 50 - 150MPa)

​​Typical Materials​​: Limestone▸sandstone▸ gravel

​​Applications​​:Aggregate production for construction and highways,sand and gravel crushing for concrete and asphalt

specification

*The output will vary according to different materials, feed particle size and other factors

Model

Cone Diameter

(mm)

Max. Feed Size

(mm)

Outlet Setting Size

(mm)

Capacity

(t/h)

Power

(kw)

Overall Dimension

(mm)
PYB-600 600 66 12-25 15-25 30 1740X1225X1940
PYD-600 600 36 3-13 5-23 30 1740X1225X1940
PYB-900 900 115 15-50 50-90 55 1990X1640X2380
PYZ-900 900 60 5-20 20-65 55 1990X1640X2380
PYD-900 900 40 3-13 15-50 55 1990X1640X2380
PYB-1200 1200 145 20-50 110-200 110 2805X2300X2980
PYZ-1200 1200 100 8-26 50-150 110 2805X2300X2980
PYD-1200 1200 50 3-15 18-105 110 2805X2300X2980
PYB-1750 1750 215 25-60 280-480 155-160 3610X2950X4185
PYZ-1750 1750 185 10-30 115-230 155-160 3610X2950X4185
PYD-1750 1750 85 5-15 75-230 155-160 3610X2950X4185
PYB-2200 2200 300 30-60 590-1000 260-280 4790X3430X5080
PYZ-2200 2200 230 10-30 200-580 260-280 4790X3430X5080
PYD-2200 2200 110 5-16 120-370 260-280 4790X3430X5080
