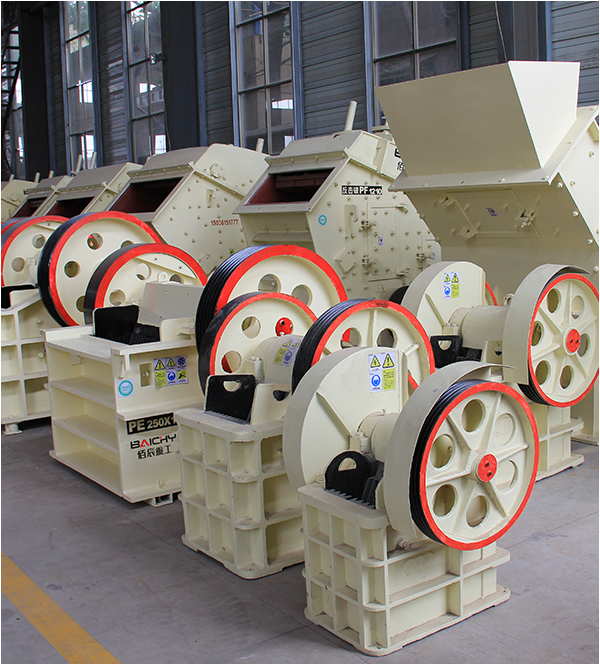

Small Jaw Crusher
[ Capacity ]: 1-20t/h
[ Applicable Material ]:
The small jaw crusher, also called mini jaw crusher, is designed for fast crushing of aggregates, ores, minerals, coal, coke, chemicals and other similar materials.It has two type: fixed and portable, electrical motor or diesel engine.
:+86-371-86555722Application
Working principle
Advantage
Specification
Mining, metallurgy, building materials, road, chemicals and a variety of ores, and many other industries.
Crushing materials: limestone, calcium carbide, hard rock, shale, basalt, river stone, blue stone, iron ore, copper, gold ore, etc.
When the small jaw crusher working, belt and belt pulley are driven by a motor. The movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the moving jaw runs down, then the materials are crushed into pieces. It becomes bigger when the movable jaw runs up. The movable jaw plate leaves the fixed jaw plate under the action of tension rod and spring , then the end products come out from the crushing cavity.
1 High reduction ratio and even final particles.
2 Simple structure and easy to be maintained.
3 Easy replacement of wearing and spare parts.
4 Reliable operation and long service life.
5 Convenient maintenance with low cost.
6) Electric motor or diesel engine
| Model | Feeding Open Size (mm) | Max. Feed Size (mm) |
Discharging opening size(mm) |
Capacity(t/h) |
Motor power(kw) |
Overall dimension(mm) |
|---|---|---|---|---|---|---|
| PE150X250 | 150X250 | 130 | 15-45 | 1-4 | 5.5 | 896*745*935 |
| PE200X300 | 200X300 | 180 | 15-50 | 2-6 | 5.5 | 910*750*990 |
| PE200X350 | 200X350 | 180 | 18-70 | 3-10 | 7.5 | 1000*870*990 |
| PE250X400 | 250X400 | 210 | 25-60 | 5-20 | 15 | 1215*1520*1030 |
△
