Application:

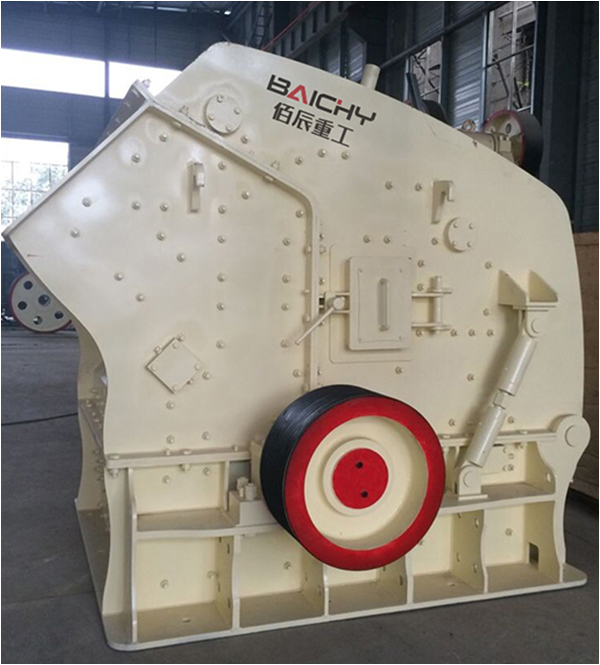

Impact crusher is widely used for crushing stone in mining, highway, railway, construction, etc. It is an irreplaceable crushing equipment for high-grade sand and gravel.

Working principle:

Impact crusher is a kind of stone crusher using impact energy. After turn on,the motor drives the rotor rotate at a high speed .When the material get into the blow bar working area,they will be stroke by the blow bar and thrown to the impact devices around the rotor.The material will come out from the discharge hole until they are crushed to the required size. The clearance between the impact rack and the rotor can adjust the size and shape of the end product.

Advantage:

1.Unique structure, keyless connection

2.High chrome hammer and special impact liner plate

3.High efficient in hard rocking crushing with big feed opening

4.Easy-adjusted learance between impact plante and blew bar, fine cubic shape

5.Two-cavity or three-cavity chamber with different advantages

Specification:

双腔反击破

Type	Feeder opening size(mm)	Max feeding size(mm)	Rotor size D*L(mm)	Capacity(t/h)	Power(kw)	Overall Dimension (mmmmmm)
PF-1007	450X750	250	Φ1000X700	10-60	45	233017002560
PF-1010	450X1100	300	Φ1000X1050	50-90	55	233020102560
PF-1210	450X1100	300	Φ1250X1050	70-130	90	264020102850
PF-1214	450X1450	350	Φ1250X1400	90-180	132	264024002850
PF-1315	650X1500	350	Φ1320X1500	120-250	160-200	293026703150

三腔反击破

Type	Feeder opening size(mm)	Max feeding size(mm)	Rotor size D*L(mm)	Capacity(t/h)	Power(kw)	Overall Dimension (mmmmmm)
PFW1214Ⅲ	450X1440	350	Φ1250X1400	90-170	132-160	255023102100
PFW1315Ⅲ	550X1500	350	Φ1320X1520	180-270	160-200	296025702380
PFW1320Ⅲ	550X1900	400	Φ1325X2000	250-400	220-280	310031752680
