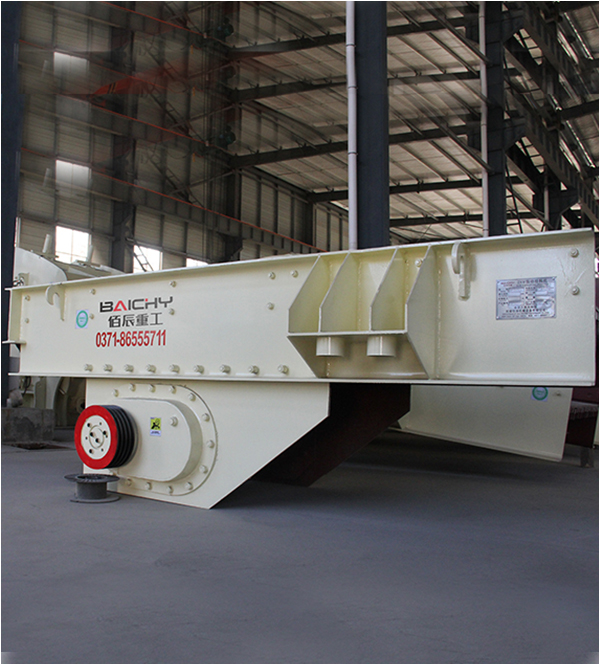

The vibrating feeder has become an essential feeding equipment in multiple industries, including mining, building materials, and metallurgy. Its ability to provide a continuous and uniform material flow makes it a key component in the production process. With the advantages of simple structure, stable operation, and adjustable feeding capacity, it can effectively improve the production efficiency and continuity of the production line.

This feeder is suitable for handling various materials, including fine powders, granular materials, and large - sized lumps. It can be customized according to different production requirements, such as feeding capacity, feeding accuracy, and material characteristics.

Products Display

Material Application

Vibrating Feeder Features

High-Hardness Materials​​

​Typical Materials​​: Gabbro​​ (≥180MPa compressive strength) ▸​​Chromite Ore​​（Critical mineral for stainless steel production）▸

​​Quartz Sandstone (Mohs 7)

​​Key Features​​

​​Heavy-Duty Construction​​: Reinforced 25mm thick hopper walls with Mn18 liner plates withstand continuous impact from large lumps.

​​Precision Control​​: Variable frequency drives (8-15Hz) maintain optimal material flow for different rock types.

​​Case Study​​: South African platinum mine uses ZSW600×130 to feed 650mm chromite lumps at 220t/h with <3% spillage.

Medium-Hardness Materials​​

​​Typical Materials​​: Phosphate Rock​​(50-120MPa)▸Oil Shale​​(Flaky sedimentary rock needing gentle vibration to prevent degradation)▸Diatomite(1.9-2.3g/cm³)

​​Technical Solutions​​

​​Anti-Dust Design​​: Fully enclosed hopper with nitrogen injection system for explosive environments.

​​Customized Decks​​: Woven wire mesh decks (10-50mm openings) for precise size screening.

​​Capacity​​: ZSW490×110 handles 160t/h of phosphate rock with 15° incline.





specification

*The output will vary according to different materials, feed particle size and other factors

Model Trough
size(mm)		 Max feed
size(mm)

Capacity

(t/h)

Motor Power

(kw)
ZSW-650*2500 650*2500 560 50-80 5.5
ZSW-850*3000 850*3000 780 80-120 7.5
ZSW-960*3800 950*3800 820 120-210 11
ZSW-1100*4200 1100*4200 1000 200-430 15
ZSW-1100*4900 1100*4900 1000 280-500 18.5
ZSW-1300*4900 1300*4900 1100 450-600 22
ZSW-1300*6000 1300*6000 1100 450-680 22
ZSW-1500*6000 1500*6000 1280 550-1200 30
