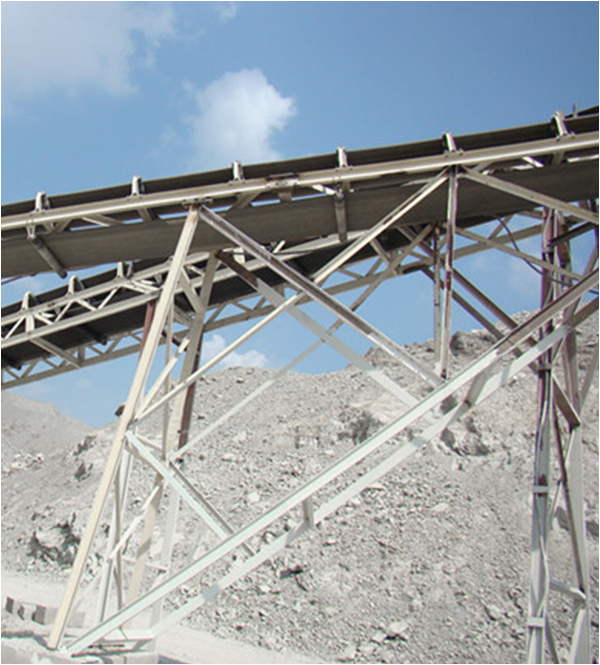

The conveyor belt has become an essential material - handling equipment in multiple industries, including mining, building materials, and metallurgy. Its ability to provide a continuous and efficient transportation of materials makes it a key component in the production process. With the advantages of simple structure, high reliability, and large - capacity transportation, it can effectively improve the production efficiency and logistics efficiency of the production line.
Material Characteristics: High density, abrasive, large particle size
Recommended Belt Width: B800 - B2400 (wide belts for high capacity)
Belt Type: Steel cord or multi-ply rubber (high tensile strength)
Speed: 2 - 4 m/s (optimized for heavy loads)
Case: A Chilean copper mine uses B1400 belt at 3.5 m/s, transporting 3,000 t/h of ore
Material Characteristics: Moderate density, some abrasiveness
Recommended Belt Width: B500 - B1200
Belt Type: Rubber-ply or heat-resistant (for high-temp materials)
Speed: 1.5 - 3 m/s (balanced efficiency & wear)
Case: A Chinese aggregate plant uses B800 belt at 2.5 m/s, handling 800 t/h of sand & gravel
Typical Materials: Granite (with a SiO₂ content > 65%, granite is a high - hardness rock) ▸Basalt (basalt is dense and has high toughness) ▸Iron Ore
Application Scenarios: Conveyor belts are used to transport high - hardness ores such as granite, basalt, and iron ore from the mining face to the primary crushing equipment. Conveyor belts play a vital role in transporting these raw materials and processed aggregates between different production stages.
Typical Materials: Limestone (limestone has a compressive strength of 50 - 150MPa) ▸Sandstone( its compressive strength ranges from 50 - 150MPa) ▸Marble(marble has a compressive strength of 50 - 150MPa)
Application Scenarios: Conveyor belts transport limestone from the storage area to the crusher and then to the cement kiln.Sandstone and marble are often used as gravel materials in construction.Conveyor belts play a key role in transporting limestone and processed calcium powder between different production steps.
*The output will vary according to different materials, feed particle size and other factors
Belt width (mm) | Conveyor length (m) / Motor power (kw) |
Belt speed (m/s) |
Capacity (t/h) |
||
500 | ≤ 10 / 3 | ≤ 10-25 / 4-7.5 | ≤ 25-45 / 11-18.5 | 1.3-1.6 | 40-100 |
650 | ≤ 10 / 4 | ≤ 10-25 / 5.5-11 | ≤ 25-45 / 15-22 | 1.3-1.6 | 80-120 |
800 | ≤ 10 / 5.5 | ≤ 10-25 / 7.5-15 | ≤ 25-45 / 18.5-30 | 1.3-1.6 | 120-200 |
1000 | ≤ 10 / 7.5 | ≤ 10-25 /11-18.5 | ≤ 25-45 / 22-37 | 1.3-2.0 | 200-320 |
1200 | ≤ 10 / 11 | ≤ 10-25 / 15-22 | ≤ 25-45 / 30-45 | 1.3-2.0 | 300-500 |
1400 | ≤ 10 / 15 | ≤ 10-25 / 18.5-30 | ≤ 25-45 / 37-55 | 1.3-2.0 | >500 |
