Application:

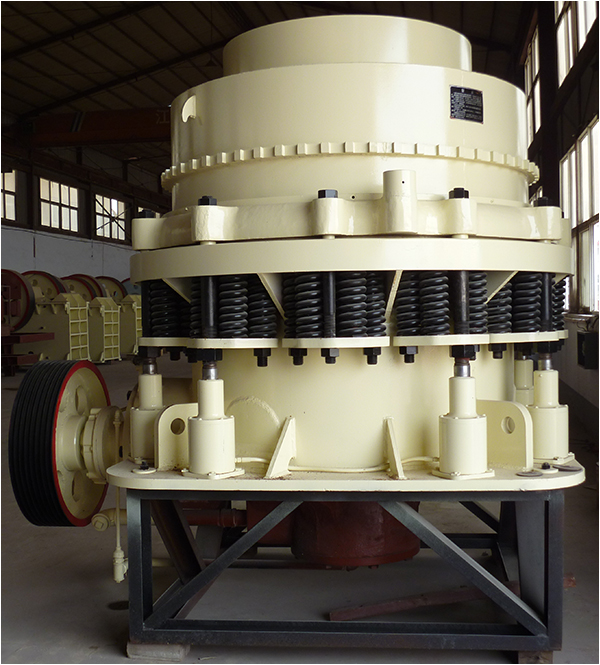

CS Symons cone crusher is widely used to crush metaliferous and non-metaliferous ores, such as iron ore, sandstone pebble, limestone, granite, basalt, diabase, cobble, etc

Working principle:

Cone crusher consist of frame, transmission device( countershaft, countershaft bushing, gear and pinion), main shaft, eccentric shaft, cone,mantle, bowl-shaped bearing, springs and hydraulic pressure station for adjusting discharge opening.
(1) Transmission device: Countershaft assembly is supported by the bronze countershatf bushings, can be dismounted for convenience of maintence. And the gear and pinipn with high strengh and high precision are adopted to ensure the reliable operation of equipment.
(2) Main shaft: Forged form hardened and tempered chrome molybdenum steel particularly large diameter to suit wear-resisting application. High quality copper socket liner can bear high crushing load, and allows the machine working under rigorous condition.
(3) Cone and mantle plate, high manganese steel casting, hydraulic lock device is convenient and reliable.
(4) Spring and hydraulic device: Convenient for adjusting the discharge size, can remove the foreign materials if non-crushable objects came into the crushing chamber.

Advantage:

1. Good product grain shape, strong production capacity
2. Good reliability and high stability
3. Easy maintenance, and easy to operate
4. Low operating costs, a wide range of applications
5. Laminated crushing, the material is good grain shape

Specification:

Standard CS series symons cone crusher

Model	Moveable Cone Dia. (mm)	Cavity Type	Feeder Opening Size		Adjusting Range of Discharge Opening（mm）	Main Shaft Speed (r/min)	Motor Power (kw)	Capacity(t/h)	Overall Dimension LWH (mm)
Model	Moveable Cone Dia. (mm)	Cavity Type	Shutting Size(mm)	Opening Size(mm)	Adjusting Range of Discharge Opening（mm）	Main Shaft Speed (r/min)	Motor Power (kw)	Capacity(t/h)	Overall Dimension LWH (mm)
CS75B	900	Fine	83	102	9-22	580	75	45-91	2821×1880×2164
CS75B	900	Coarse	159	175	13-38	580	75	59-163	2821×1880×2164
CS110B	1200	Fine	127	131	9-31	485	110	63-188	2821×1974×2651
		Medium	156	156	13-38			100-200
		Coarse	178	191	19-51			141-308
CS160B	1295	Fine	109	137	13-31	485	160	109-181	2800×2342×2668
		Medium	188	210	16-38			132-253
		Coarse	216	241	19-51			172-349
CS220B	1650	Fine	188	209	16-38	485	220	181-327	3911×2870×3771
		Medium	213	241	22-51			258-417
		Coarse	241	268	25-64			299-635
CS315B	2134	Fine	253	278	19-38	435	315	381-726	4613×3251×4732
		Medium	303	334	25-51			608-998
		Coarse	334	369	31-64			789-1270

Short head CS series cone crusher

Model	MoveableCone Dia. (mm)	Cavity Type	Feeder Opening Size		Discharging Opening Size(mm)	Main Shaft Speed (r/min)	Power(kw)	Capacity(t/h)	Overall Dimension LWH(mm)
Model	MoveableCone Dia. (mm)	Cavity Type	Shutting Size(mm)	Opening Size (mm)	Discharging Opening Size(mm)	Main Shaft Speed (r/min)	Power(kw)	Capacity(t/h)	Overall Dimension LWH(mm)
CS75D	914	Fine	13	41	3-13	580	75	27-90	2821×1880×2410
CS75D	914	Coarse	33	60	3-16	580	75	27-100	2821×1880×2410
CS110D	1218	Fine	29	57	5-16	485	110	50-132	2560×1942×2928
		Medium	44	73	10-16			90-145
		Coarse	56	89	13-19			141-181
CS160D	1295	Fine	29	64	3-16	485	160	36-163	2800×2342×2668
		Medium	54	89	6-16			82-163
		Coarse	70	105	10-25			109-227
CS220D	1676	Fine	35	70	5-13	485	220	90-209	3917×2870×3771
		Medium	54	89	6-19			136-281
		Coarse	98	133	10-25			190-336
CS315D	2134	Fine	51	105	5-16	435	315	190-408	4130×3251×4454
		Medium	95	133	10-19			354-508
		Coarse	127	178	13-25			454-599
