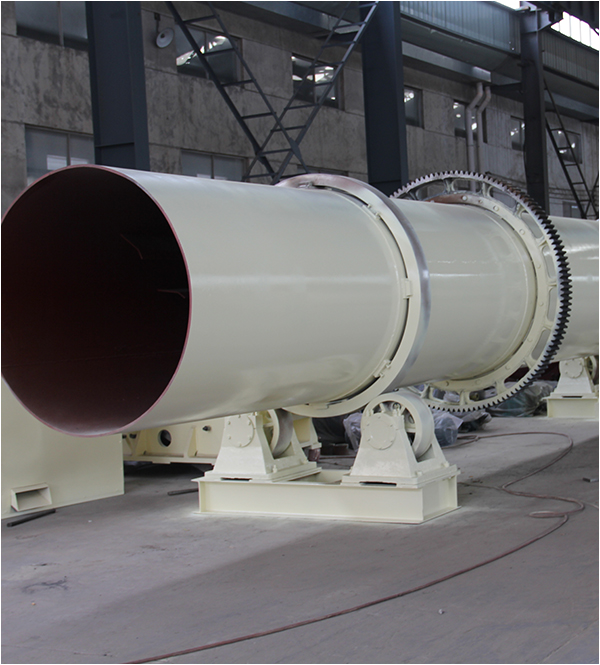

A rotary dryer is a widely used industrial equipment designed to reduce the moisture content of bulk materials through continuous, indirect or direct heat transfer. Characterized by a rotating cylindrical drum, it is essential in sectors such as mining, agriculture, chemical processing, and waste management, where drying is a critical step in material processing, storage, or transportation. Its ability to handle large volumes of diverse materials—from granular ores to sludges—makes it a cornerstone of many industrial drying operations.
The core rotating drum—steel-made with heat/corrosion-resistant linings—is inclined (2°–5°) to aid material flow. Support rollers and trunnion rings stabilize rotation, while a drive system (motor, reducer) controls speed (1–5 rpm). Internal lifters cascade materials to maximize contact with hot gas. Feed chutes, discharge hoods, heat sources (burners/exchangers), and exhaust systems (fans, filters) complete the setup.
● Optimal range: 0.5mm to 50mm (from fine particles to coarse lumps)
● Can handle slightly sticky materials with proper drum design
● Materials requiring pre-crushing if exceeding size limits
● Initial moisture: 15%-45% (wet basis)
● Final moisture: Typically reduced to 5%-15%
● Effective for both surface moisture and bound moisture removal
● Can process materials with heat resistance up to 800-1000°C
● Special linings required for extremely abrasive materials
● Temperature control critical for heat-sensitive minerals
● Sand, Iron ore, Copper concentrate, Coal slime, Limestone, Gypsum, Clay, Some phosphate rocks, Fine materials, Powdered ores etc.
Our single-drum rotary dryer delivers versatile drying solutions across industries,
● efficiently handling metal ores like iron ore pellets (moisture reduction for smelting), copper/zinc/lead concentrates (pre-shipment drying), and bauxite/alumina (processing prep).
● It excels with industrial minerals including silica sand (foundry preparation), gypsum (wallboard production), kaolin clay (ceramics), and limestone (cement).
● Specialty applications cover coal (thermal efficiency boosting), mineral sands (ilmenite/rutile/zircon), and salt/potash dehumidification.
● Additionally, it processes byproducts such as slag (construction materials) and mine tailings (volume reduction), ensuring optimal moisture control for diverse material streams.
*The output will vary according to different materials, feed particle size and other factors
Spec. (Dia.x Length mm) |
Volume(m³) | Capacity (t/h) | Gradient(%) | Highest Inlet Air Temperature(℃) |
Rotate Speed(r/min) | Main Motor(kw) |
---|---|---|---|---|---|---|
Φ600x6000 | 1.7 | 0.5-1.5 | 3~5 | 700~800 | 3~8 | 3 |
Φ800x8000 | 4.1 | 0.8-2.0 | 3~5 | 700~800 | 3~8 | 4 |
Φ800x10000 | 5.1 | 0.8-2.5 | 3~5 | 700~800 | 3~8 | 4 |
Φ1000x10000 | 7.9 | 1.0-3.0 | 3~5 | 700~800 | 3~8 | 7.5 |
Φ1000x12000 | 9.4 | 1.2-3.2 | 3~5 | 700~800 | 3~8 | 11 |
Φ1200x8000 | 9 | 1.9-2.4 | 3~5 | 700~800 | 3~8 | 7.5 |
Φ1200x10000 | 11.3 | 2.2-3.0 | 3~5 | 700~800 | 3~8 | 7.5 |
Φ1200x12000 | 13.6 | 2.4-3.2 | 3~5 | 700~800 | 3~8 | 7.5 |
Φ1500x12000 | 21.2 | 4.5-5.7 | 3~5 | 700~800 | 2~6 | 15 |
Φ1500x14000 | 24.7 | 5.3-6.6 | 3~5 | 700~800 | 2~6 | 15 |
Φ1500x16000 | 26.5 | 5.7-7.1 | 3~5 | 700~800 | 2~6 | 15 |
Φ1800x12000 | 30.5 | 6.5-8.1 | 3~5 | 700~800 | 2~6 | 18.5 |
Φ1800x14000 | 35.6 | 7.6-9.5 | 3~5 | 700~800 | 2~6 | 18.5 |
Φ1800x16000 | 40.7 | 7.8-10.2 | 3~5 | 700~800 | 2~6 | 18.5 |
Φ2000x18000 | 56.5 | 8.4-12.3 | 3~5 | 700~800 | 1.5~6 | 22 |
Φ2000x20000 | 62.8 | 9.0-13.6 | 3~5 | 700~800 | 1.5~6 | 22 |
Φ2200x16000 | 60.8 | 11.4-15.8 | 3~5 | 700~800 | 1.5~6 | 22 |
Φ2200x18000 | 68.3 | 12.8-16.2 | 3~5 | 700~800 | 1.5~6 | 22 |
Φ2200x20000 | 75.9 | 13.0-16.5 | 3~5 | 700~800 | 1.5~6 | 30 |
Φ2400x16000 | 72.3 | 13.5-16.9 | 3~5 | 700~800 | 1.5~5 | 37 |
Φ2400x18000 | 81.4 | 17.4-21.7 | 3~5 | 700~800 | 1.5~5 | 45 |
Φ2400x20000 | 90.4 | 19.3-24.1 | 3~5 | 700~800 | 1.5~5 | 55 |
Φ2600x24000 | 127.4 | 27.2-34.0 | 3~5 | 700~800 | 1.5~5 | 75 |
Φ2600x28000 | 148.6 | 28.6-36.2 | 3~5 | 700~800 | 1.5~5 | 75 |
Φ3000x20000 | 141.3 | 30.1-37.7 | 3~5 | 700~800 | 1.5~5 | 85 |
Φ3000x25000 | 176.6 | 37.7-47.1 | 3~5 | 700~800 | 1.5~5 | 90 |
Φ3200x25000 | 201 | 42.9-53.6 | 3~5 | 700~800 | 1.5~5 | 110 |
