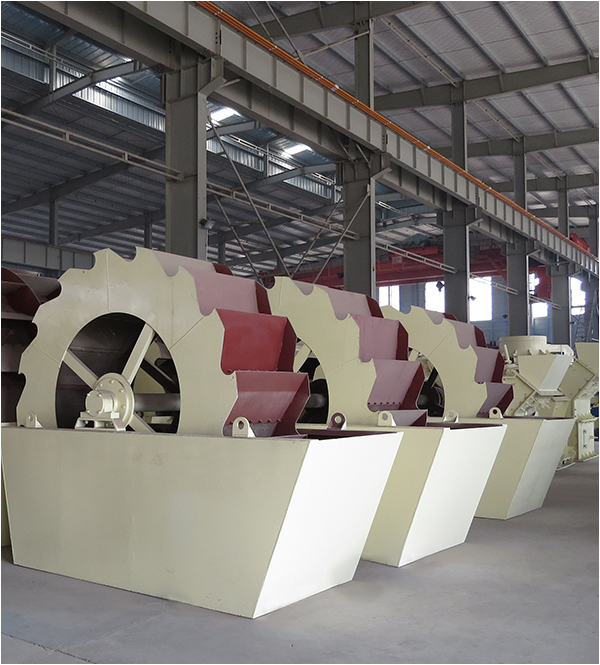

Wheel Sand Washing Machine

The wheel sand washing machine is essential for final sand processing, removing dust and impurities to improve product quality. Popular models like XSD2610 offer high cleaning efficiency with minimal sand loss. Its unique wheel design and water circulation system ensure thorough washing while conserving water. With sturdy construction and low maintenance requirements, this equipment is ideal for sand production lines, concrete plants and construction projects demanding high-purity sand.

≤ 10

Feed Size
4-30KW

Motor Power
30–160 t/h

Processing Capacity

0086-15093222637 [email protected]

The Wheel Sand Washing Machine is a critical equipment for sand processing in mining, construction, and concrete industries. Designed for cleaning and dewatering artificial sand (0-5mm) and natural sand, it effectively removes impurities (clay, dust) while achieving <0.075mm particle retention rate below 3%. Featuring a unique wheel structure and water circulation system, this washer combines high cleaning efficiency (98%+) with low water consumption (10-15t water per ton sand). Its robust construction makes it ideal for large-scale sand production plants and infrastructure projects requiring high-purity aggregates.

When selecting models, key factors include material gradation (XSD2610 for fine sand, XSD3218 for coarse sand) and operational requirements (including sludge handling and water recycling systems). Future innovations will focus on intelligent water management and wear-resistant components to further enhance environmental performance and service life in harsh working conditions.

Products Display

For High-Clay Materials

Material characteristics: Sticky impurities, poor permeability

Optimized configuration:

• High-intensity spray bars (1.2MPa pressure)

• Extended washing cycle (120-150s retention)

• Double-layer overflow weirs

Case: Fujian granite sand plant reduces clay content from 8% to 0.5%
For Abrasive Sands

Material characteristics: High SiO₂ content, wear potential

Key solutions:

• Ni-Cr alloy wear plates

• Modular wheel design

• Sand recovery hydrocyclone

Case: Malaysia silica sand project achieves 99% purity with <1% fine particle loss

Material Application

Standard Sand Processing

Typical materials:▸ Machine-made sand (granite/basalt origin)▸ River sand (natural deposit)▸ Crushed limestone sand▸ Recycled concrete sand

Application scenarios:

✓ High-grade concrete sand production
✓ Precast concrete component plants
✓ Highway/railway construction projects

Specialized Washing Requirements

Typical materials:▸ Kaolin clay (mineral processing)▸ Silica sand (industrial grade)▸ Slag sand (metallurgical byproduct)▸ Desert sand (pretreatment)

Application scenarios:

✓ Mineral beneficiation plants
✓ Foundry sand recycling
✓ Land reclamation projects

specification

*The output will vary according to different materials, feed particle size and other factors

Model	Impeller Dia.(mm)	Feeding Size(mm)	Capacity(t/h)	Motor Power(kw)
XSD2300	Φ2300	≤ 10	20-30	4
XSD2610	Φ2600		30-80	7.5
XSD2915	Φ2900		60-120	11
XSD3016	Φ3000		80-160	15
XSD3218	Φ3200		130-220	22
XSD3420	Φ3400		160-300	22-30
