Application:

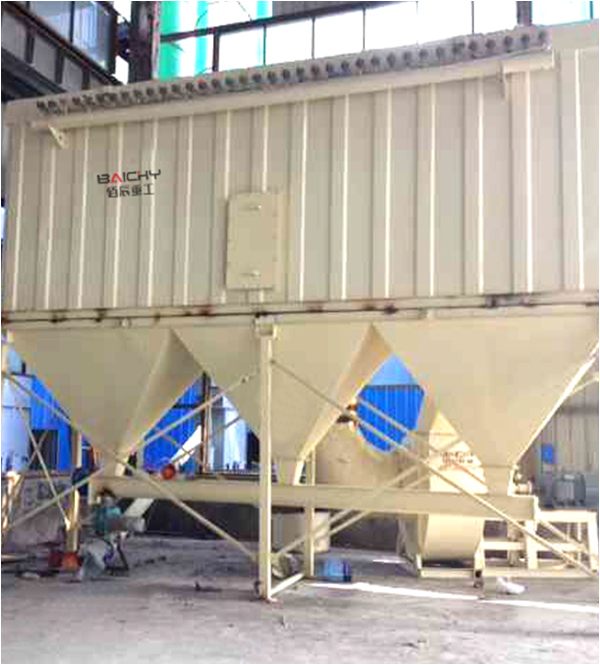

Pulse dust collector is applied in air purification and material recovery in metallurgy, electric power, building materials, mine, cement, chemical engineering, carbon black, asphalt concrete mixing, boiler, and other industries.

Working principle:

Under the effect of the air fan,air flow with dust is sucked into the dust collecting chamber from the bottom or one side. For those big dust particles, they will go downwards because of the decreasing speed of the air flow.While, for those fine dust particles,they will be stopped to the outside layer of the filter bag. When compressed air blow reverse back the filter bag, the fine particles will break away from the bag and go downwards with the big particles. Finally, dust particles will be discharged outside and the purified air will be discharged upon the upper side of the cleaning chamber. Finally, it plays the role of collecting dust, air pollution prevention purpose.

Advantage:

1.Using right angle pulse valve to do single blowing in strong dust cleaning ability.

2. The filter bag is ring type mouth design, good sealing, convenient installation.

3. Spray protective treatment process, high strength and stiffness of framework, no welding burrs, reduce mechanical wear and prolong service life.

4. Adopt to open the upper cover, filter bag replacement fast and convenient.

5.Using PLC or specialized program controller to control pulse valve, reliable operation and high degree of automation.

6.High efficiency of cleaning; Purification rate is more than 99% on the particles bigger than sub-micron

Specification:

Model	Total filter area (m2)	Filtering wind speed (m/s)	Input air (m³/h)	No. of filter bag (pc)	Specification of filter bag (mm)	Air consumption (m³/h)	Density of inlet (g/m³)	Density of outlet (mg/m³)
DMC-32	24-32	1.04-1.67	1500-2400	32	∅120x2000/∅130x2500	0.032	200	50
DMC-48	36-48	1.15-1.62	2500-3500	48	∅120x2000/∅130x2500	0.048
DMC-64	48-64	1.21-1.74	3500-5000	64	∅120x2000/∅130x2500	0.064
DMC-80	60-80	1.25-1.67	4500-6000	80	∅120x2000/∅130x2500	0.08
DMC-96	72-96	1.27-1.62	5500-7000	96	∅120x2000/∅130x2500	0.096
DMC-112	84-112	1.28-1.68	6500-8500	112	∅120x2000/∅130x2500	0.11
DMC-128	90-128	1.31-1.76	7500-9500	128	∅120x2000/∅130x2500	0.12
DMC-168	126-168	2.54-2.87	9500-10500	168	∅120x2000/∅130x2500	0.168
