Application:

pebble, limestone, granite, basalt, diabase, andesite, etc

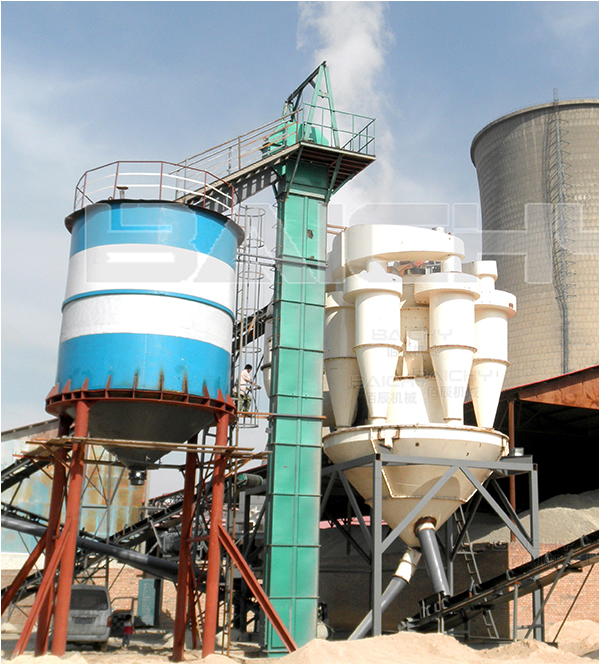

In industrial grinding plant, loop flow grinding system is commonly used to improve efficiency of grinding system and reduce energy consumption. It is an important part of the system, its performance has direct impact on the system's efficiency. ZDS series of Efficient Powder Separator is the latest powder separating equipment developed by our company, the separating rate could reach 85% -90% or more, and the fineness adjustment is convenient and flexible, the performance is stable and reliable.

Working principle:

In industrial grinding plant, loop flow grinding system is commonly used to improve efficiency of grinding system and reduce energy consumption. It is an important part of the system, its performance has direct impact on the system's efficiency. ZDS series of Efficient Powder Separator is the latest powder separating equipment developed by our company, the separating rate could reach 85% -90% or more, and the fineness adjustment is convenient and flexible, the performance is stable and reliable.

Advantage:

1. Using flexible combined propeller bulk plate.
2. High grading accuracy.
3. Spindle speed can be changed by adjusting motor speed, fine adjustment is easy.
4. Using low resistance with high efficiency cyclone dust collector.
5. Particle size distribution is more reasonable, final product quality has been improved significantly.

Specification:

Model		S400	S500	S600	S700	S900	S1000	S1100	S1200
Matched mill (m)		Φ1.5	Φ1.83	Φ2.2	Φ2.4	Φ3.0
Motor Blower	Model	YCTL200-4A	YCTL200-4B	YCTL200-4A	YCTL200-4B	YCTL200-4B	YCTL200-4A	YCTL200-4A	YCTL200-4B
	Rotating speed(r/min)	125-1250		132-1320			440-1340	440-1340	600-1340
	Power (KW)	7.5	11	15	18.5	37	55	75	90
	Model	SCF-12NO.8C	SCF-12NO.8C	SCF-12NO.10C	SCF-12NO.12C	SCF-12NO.12C	SCF-12NO.16B	SCF-12NO.16D	SCF-12NO.12C
	Volume	24216	30900	37960	58200	119332	168000	192000	211000
	Air pressure	2.18	2.43	2.34	2.07	2.26	2.70	2.70	2.60
	Rotating speed(r/min)	1500	1600	1200	1000	800	960	960	710
	Model	Y180M-2	Y200L1-2	Y225S-4	Y225M-4	Y335M1-8	Y335M1-6	Y335M3-6	Y335L-8
	Power (KW)	22	30	37	55	132	160	200	220
Rotating speed of shaft (r/min)		190-380	190-380	150-350	150-350	140-350	100-300
