Vibrating Screen has become the core screening equipment in mining, construction, and aggregate industries due to its high efficiency, precise grading, and durable construction. Choosing the right model (such as YZS1548, YZS1860, etc.) and optimizing operating parameters (amplitude, screen angle) can significantly improve screening performance and economic benefits.

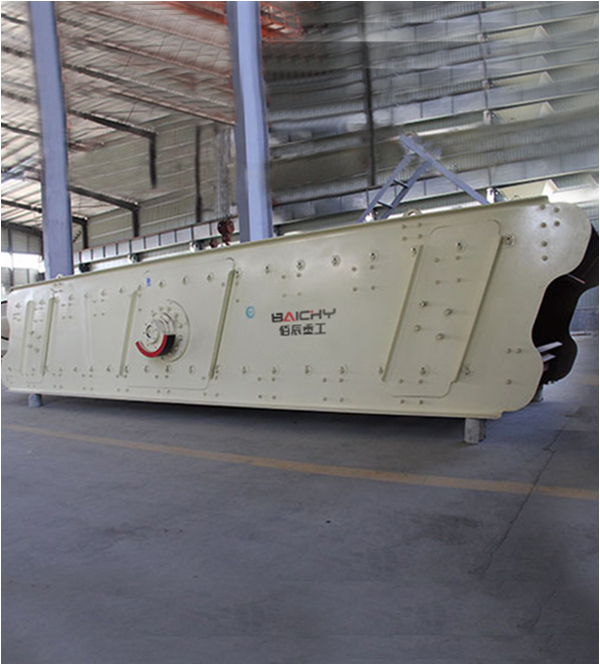

YK series vibrating screen is a high-efficiency vibrating screening equipment that uses an inner eccentric shaft or block eccentricity as the excitation force. It has the advantages of a stable structure, high screening efficiency, low power consumption, and low noise. It is widely used in product grading and screening operations in many industries.YK series vibrating screens are widely used in quarrying sand and gravel, as well as product grading in coal preparation, mineral processing, building materials, power, and chemical industries. Its efficient and stable screening performance has been recognized by the majority of users.
Material characteristics: high density, large particle size, high abrasiveness
• Model selection: Linear vibrating screen or circular vibrating screen with wear-resistant screen mesh
• Screen material: high manganese steel or polyurethane screen mesh
Vibration parameter adjustment: higher vibration intensity (4.5-6.0mm amplitude)Case: South African gold ore processing plant uses circular vibrating screen, equipped with spray dust suppression system, service life reaches 24 months
Material characteristics: medium density, various particle sizes, moderate abrasiveness
• Model selection: Linear vibrating screen models can meet most needs
• Dust prevention measures: Add a spray dust suppression system
Capacity improvement: Adjust vibration frequency appropriately (800-1000rpm)Special materials (construction waste, solid waste): Contains metal impurities and irregular materials → equipped with flexible screen mesh and wear-resistant lining
Typical materials: ▸ Iron ore ▸ Gold ore ▸ Copper ore ▸ Granite
Application scenarios: Ore classification in mining, sand and gravel aggregate grading, pretreatment of mineral processing raw materials
Typical materials: ▸ Coal ▸ Limestone ▸ Sand ▸ Construction waste
Application scenarios: Coal washing plant screening, construction waste recycling, sand and gravel production line classification
Typical materials: ▸ Cement clinker ▸ Powdered ore ▸ Fine sand ▸ Clay
Application scenarios: Fine powder classification, dehydration screening, fine material separation
*The output will vary according to different materials, feed particle size and other factors
Model |
Sieve spec (mm) |
Deck |
Mesh size (mm) |
Max feeding size (mm) |
Capacity (t/h) |
Motor power (kw) |
Vibrating Frequency (r/min) |
Double amplitude (mm) |
2YK1237 | 3700×1200 | 2 | 3-50 | 200 | 30-100 | 7.5 | 970 | 5-9 |
3YK1237 | 3700×1200 | 3 | 3-50 | 200 | 30-100 | 11 | 970 | 5-9 |
4YK1237 | 3700×1200 | 4 | 3-50 | 200 | 30-100 | 11 | 970 | 5-9 |
2YK1548 | 4800X1500 | 2 | 3-100 | 400 | 30-275 | 15 | 970 | 5-9 |
3YK1548 | 4800X1500 | 3 | 3-100 | 400 | 30-275 | 18.5 | 970 | 5-9 |
4YK1548 | 4800X1500 | 4 | 3-100 | 400 | 30-275 | 22 | 970 | 5-9 |
2YK1848 | 4800X1800 | 2 | 3-100 | 400 | 56-330 | 18.5 | 970 | 5-9 |
3YK1848 | 4800X1800 | 3 | 3-100 | 400 | 56-330 | 18.5 | 970 | 5-9 |
4YK1848 | 4800X1800 | 4 | 3-80 | 400 | 56-330 | 22 | 970 | 5-9 |
2YK1860 | 6000X1800 | 2 | 3-100 | 400 | 65-586 | 18.5 | 970 | 5-9 |
3YK1860 | 6000X1800 | 3 | 3-100 | 400 | 65-586 | 22 | 970 | 5-9 |
4YK1860 | 6000X1800 | 4 | 3-100 | 400 | 65-586 | 30 | 980 | 5-9 |
2YK2160 | 6000X2100 | 2 | 3-100 | 400 | 81-720 | 22 | 980 | 5-9 |
3YK2160 | 6000X2100 | 3 | 3-100 | 400 | 81-720 | 30 | 970 | 5-9 |
4YK2160 | 6000X2100 | 4 | 3-100 | 400 | 81-720 | 37 | 980 | 5-9 |
2YK2460 | 6000X2400 | 2 | 3-150 | 400 | 100-810 | 22 | 970 | 5-9 |
3YK2460 | 6000X2400 | 3 | 3-150 | 400 | 100-810 | 30 | 980 | 5-9 |
4YK2460 | 6000X2400 | 4 | 3-150 | 400 | 150-850 | 37 | 980 | 5-9 |
2YK3070 | 7000×3000 | 2 | 3-150 | 400 | 220-1000 | 37 | 980 | 5-9 |
3YK3070 | 7000×3000 | 3 | 3-150 | 400 | 220-1000 | 45 | 980 | 5-9 |
4YK3070 | 7000×3000 | 4 | 3-150 | 400 | 220-1000 | 55 | 980 | 5-9 |
2YK3070-2 | 7000×3000 | 2 | 3-100 | 400 | 250-1100 | 2×22 | 980 | 5-9 |
3YK3070-2 | 7000×3000 | 3 | 3-150 | 400 | 250-1100 | 2×30 | 980 | 5-9 |
2YK3270-2 | 7000×3200 | 2 | 3-150 | 400 | 300-1250 | 2×30 | 980 | 5-9 |
3YK3270-2 | 7000×3200 | 3 | 3-150 | 400 | 300-1250 | 2×37 | 980 | 5-9 |
2YK3675-2 | 7500×3600 | 2 | 3-150 | 400 | 400-1400 | 2×37 | 980 | 5-9 |
3YK3675-2 | 7500×3600 | 3 | 3-150 | 400 | 400-1400 | 2×45 | 980 | 5-9 |
