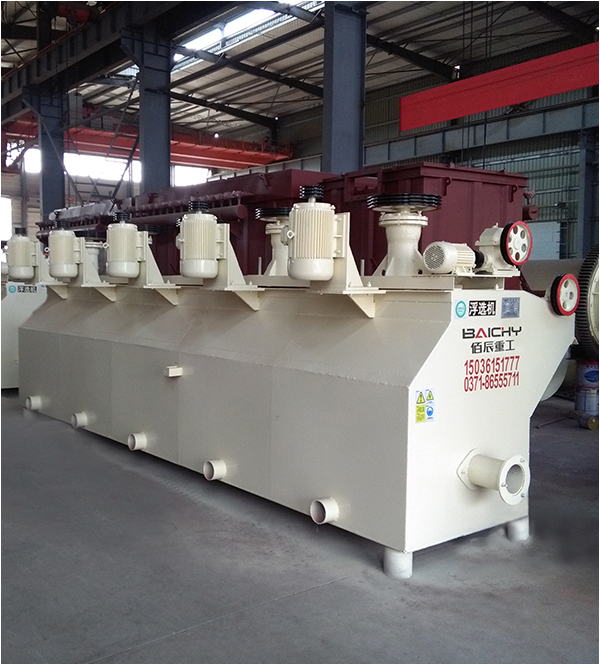

A flotation cell machine is a vital piece of equipment in mineral processing and various industrial sectors, designed to separate valuable minerals from gangue (worthless rock) through the use of froth flotation. This process leverages differences in the surface properties of particles, where hydrophobic (water-repelling) particles attach to air bubbles and rise to form a froth layer, which is then collected as the concentrate. Flotation cell machines are indispensable in extracting metals like copper, lead, zinc, and gold, as well as in non-metallic mineral processing and wastewater treatment.
1. Ore Preparation: Crushed ore is mixed with water and reagents to enhance mineral hydrophobicity.
2. Agitation & Aeration: The slurry is agitated while air is pumped in, forming bubbles.
3. Bubble-Mineral Attachment: Hydrophobic minerals attach to bubbles and rise to the surface.
4. Froth Collection: The froth (loaded with valuable minerals) is skimmed off, while hydrophilic (water-attracting) waste material sinks.
5. Concentrate & Tailings Separation: The collected froth is further processed, while tailings (waste) are discarded.
Rougher flotation is the initial stage in the flotation circuit, designed to maximize the recovery of valuable minerals from the raw ore slurry. At this stage, the primary goal is to capture as much of the target mineral as possible, even if the resulting concentrate contains a significant amount of gangue or impurities.
● In base metal mining (e.g., copper, lead, zinc), it separates sulfide minerals from silicate gangue in the first pass.
● In coal processing, it removes ash-forming minerals and pyrite from raw coal slurry, producing a primary coal concentrate.
● In gold mining, it recovers gold particles, often in association with sulfide minerals, from the ore matrix.
Cleaner flotation follows the rougher stage and focuses on improving the grade of the concentrate by removing entrained gangue and unwanted minerals. This stage prioritizes purity over maximum recovery, refining the rougher concentrate to meet market or downstream processing requirements.
● In copper processing, it upgrades rougher concentrates to meet smelter specifications, reducing the sulfur and gangue content.
● In molybdenum mining, multiple cleaner stages are used to produce high-grade molybdenum concentrates (often >90% MoS₂) by removing copper and iron sulfides.
● In phosphate processing, it purifies phosphate concentrates by removing silica and other impurities, ensuring suitability for fertilizer production.
Flotation cell machines are primarily used in the mining industry for the separation of valuable minerals from ores. They are critical in processing copper, lead-zinc, nickel, gold, and platinum-group metals, as well as industrial minerals like fluorspar, phosphate, and potash. In coal processing, flotation cells separate clean coal from ash and pyrite, improving the quality of the fuel.
Beyond mining, flotation cell machines find applications in wastewater treatment, where they remove oil, grease, and suspended solids from industrial effluents. They are also used in the paper industry to deink recycled paper and in the chemical industry for separating organic compounds from solutions. Additionally, flotation cells play a role in environmental remediation, such as removing heavy metals from contaminated water.
*The output will vary according to different materials, feed particle size and other factors
SF series Flotation Machine
Model | SF0.37 | SF0.7 | SF1.2 | SF2.8 | SF4 | |
Volume (m³) | 0.37 | 0.7 | 1.2 | 2.8 | 4 | |
Impeller diameter(mm) | 300 | 350 | 450 | 550 | 650 | |
Capacity (m³/min) | 0.2-0.4 | 0.3-0.9 | 0.6-1.2 | 1.5-3.5 | 0.5-4 | |
Impeller Speed(r/min) | 352 | 400 | 312 | 268 | 238 | |
Impeller motor | Model | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y180L-6 |
Power (Kw) | 1.5 | 3 | 5.5 | 11 | 15 | |
Scraper motor | Model | Y90S-4 | Y90L-4 | |||
Power (Kw) | 1.1 | 1.5 |
XJK Series Flotation Machine
Model | XJK-0.13(1A) | XJK-0.23(2A) | XJK-0.35(3A) | XJK-0.62(4A) | XJK-1.1(5A) | XJK-2.8(6A) | |
Volume (m³) | 0.13 | 0.23 | 0.35 | 0.62 | 1.1 | 2.8 | |
Impeller diameter(mm) | 200 | 250 | 300 | 350 | 500 | 600 | |
Capacity (m³/min) | 0.05-0.16 | 0.12-0.28 | 0.18-0.4 | 0.3-0.9 | 0.6-1.6 | 1.5-3.5 | |
Scraper Speed(r/min) | 17.5 | 17.5 | 17.5 | 26 | 26 | 26 | |
Impeller motor | Model | Y100L1-4 | Y90L-4 | Y90L-4 | Y100L2-6 | Y132M2-6 | Y160L-6 |
Power (Kw) | 2.2 | 1.5 | 1.5 | 3 | 5.5 | 11 | |
Scraper motor | Model | Y80M1-4 | Y80M1-4 | Y80M2-4 | Y80M2-4 | Y90S-4 | Y90S-4 |
Power (Kw) | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 | 1.1 |
